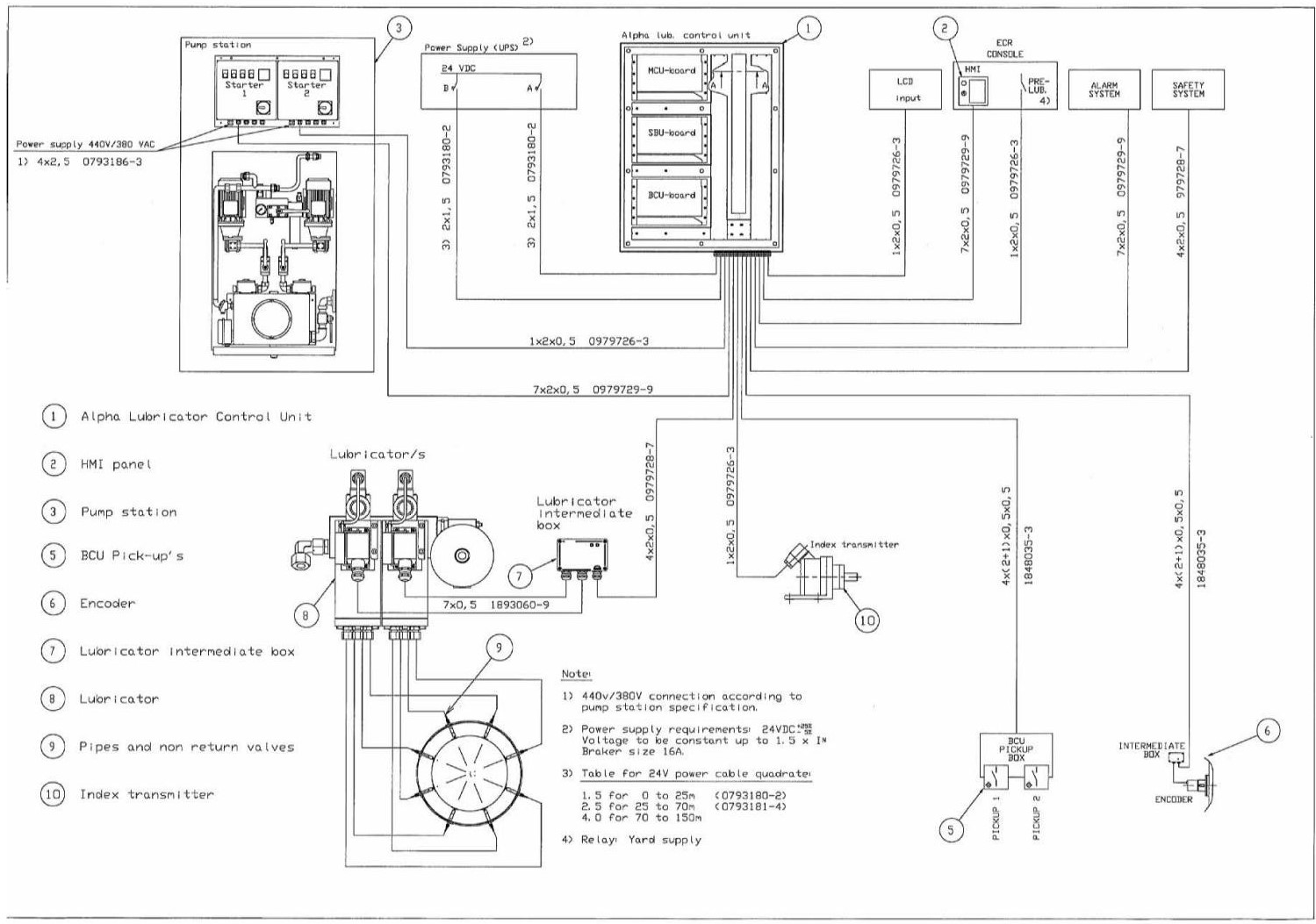

Alpha Lubricator Description
02. HMI panel

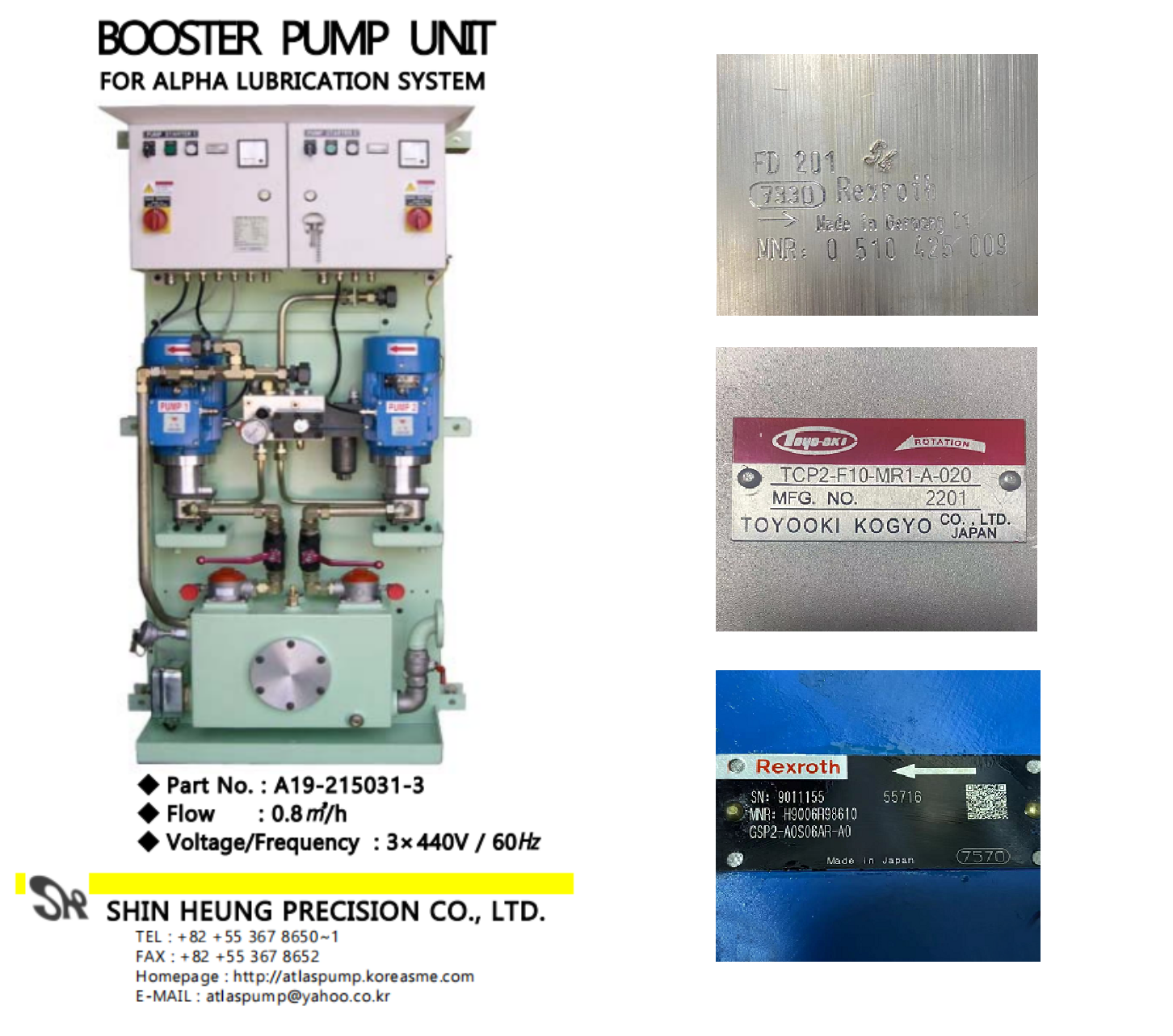

03. Pump station
04. Transmitter box for Alpha Lubricator
05. BCU Pick-up´s
06. Encoder
07. Lubricator intermediate box
08. Service Kit for alpha Lubricator
09. Pipes and non-return valves
10. Index transmitter
COMPONENTS | ITEM | TYPE | MAKER | ORIGIN |

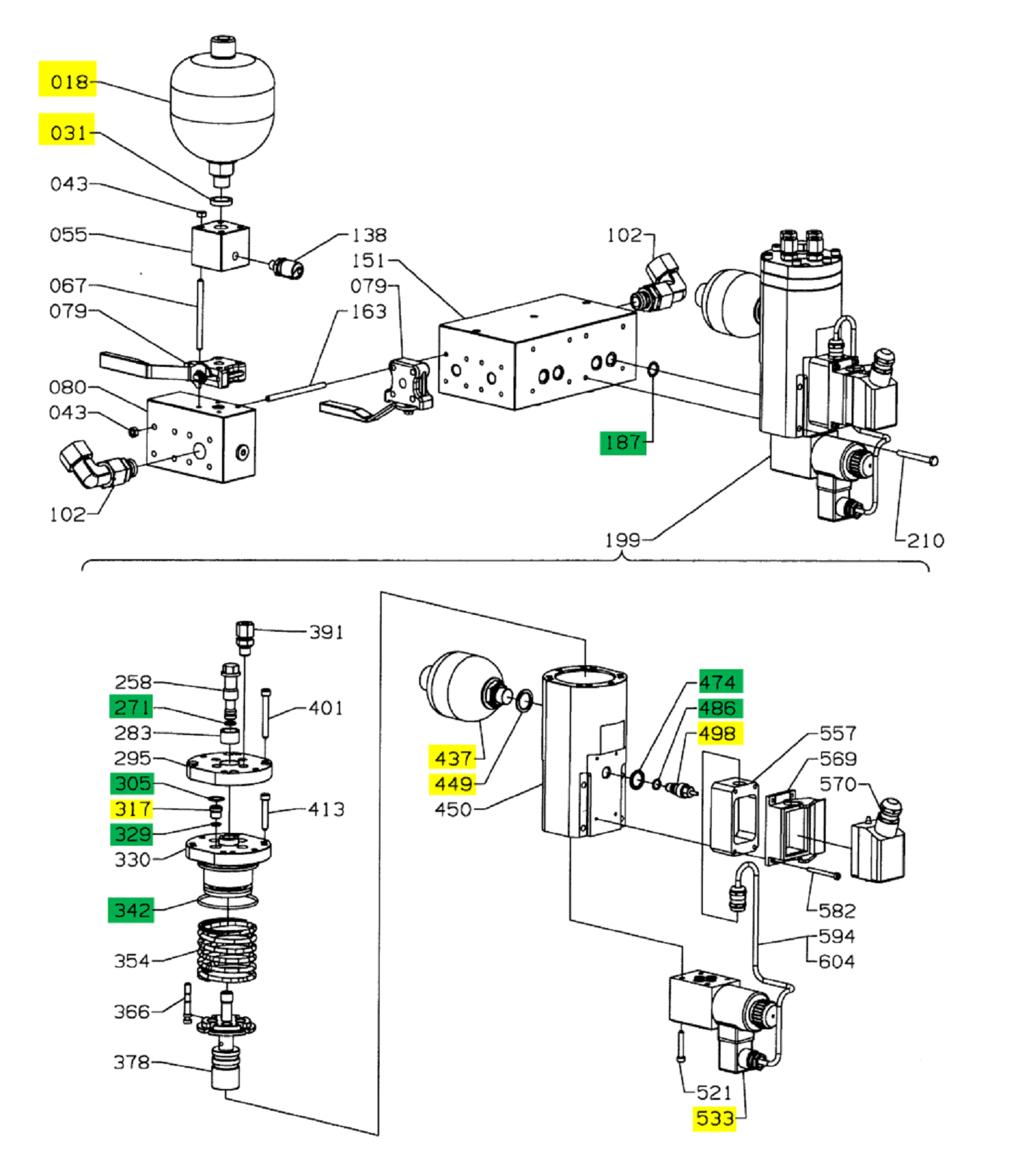

Alpha Lubricator | Inlet accumulator① | 0.7L | Rexroth | Germany |
Outlet accumulator② | 0.16L | Rexroth | Germany | |
Inlet accumulator① | 0.7L | HYDAC | Germany | |
Outlet accumulator② | 0.16L | HYDAC | Germany | |
Inlet accumulator① | 0.7L | PARKER | USA | |
Outlet accumulator② | 0.16L | PARKER | USA | |
Solenoid Valve CompleteMC | R901186443 | Rexroth | Germany | |
Solenoid Valve CompleteME | R900050392 | Rexroth | Germany | |
Non return valve | 5BAR | CHINA | ||
Non return valve | 5BAR | KOREA | ||
Feedback sensor/Inductive sensor | DW-AD-603-M10E-637 | M10 | Switzerland | |
Feedback sensor/Inductive sensor | DW-AD-603-M10E-620 | M10 | Switzerland | |
Feedback sensor/Inductive sensor | PEPPERL+FUCHS | M10 | Germany | |

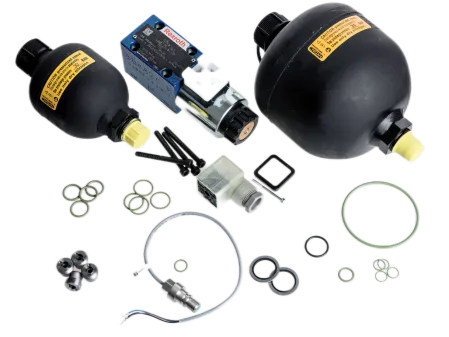

Seal kits for alpha lubricator | OEM | |||

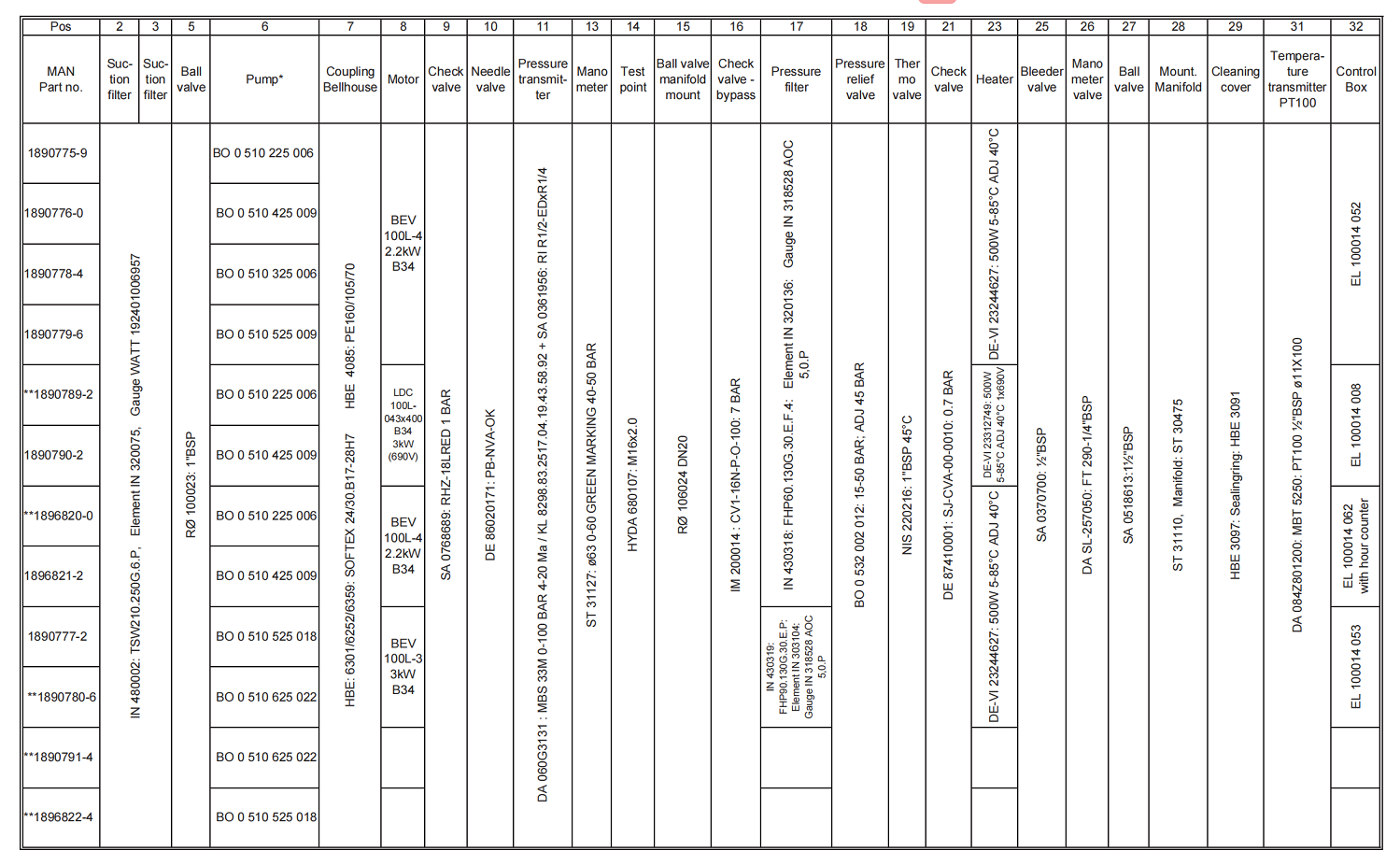

PUMP STATION | Suction Filter① | 01.TS.210.250G.B | Eaton | USA |
Pressure Filter② | 01.E.60.130G.30.E.P | Eaton | USA | |
Suction Filter① | 0240 RS 200W | HYDAC | Germany | |
Pressure Filter② | 0060 D100 W/HC | HYDAC | Germany | |
Suction Filter① | P-TSF-06-150W | JAPAN | ||
Pressure Filter② | P-GM-2-40UW | JAPAN | ||

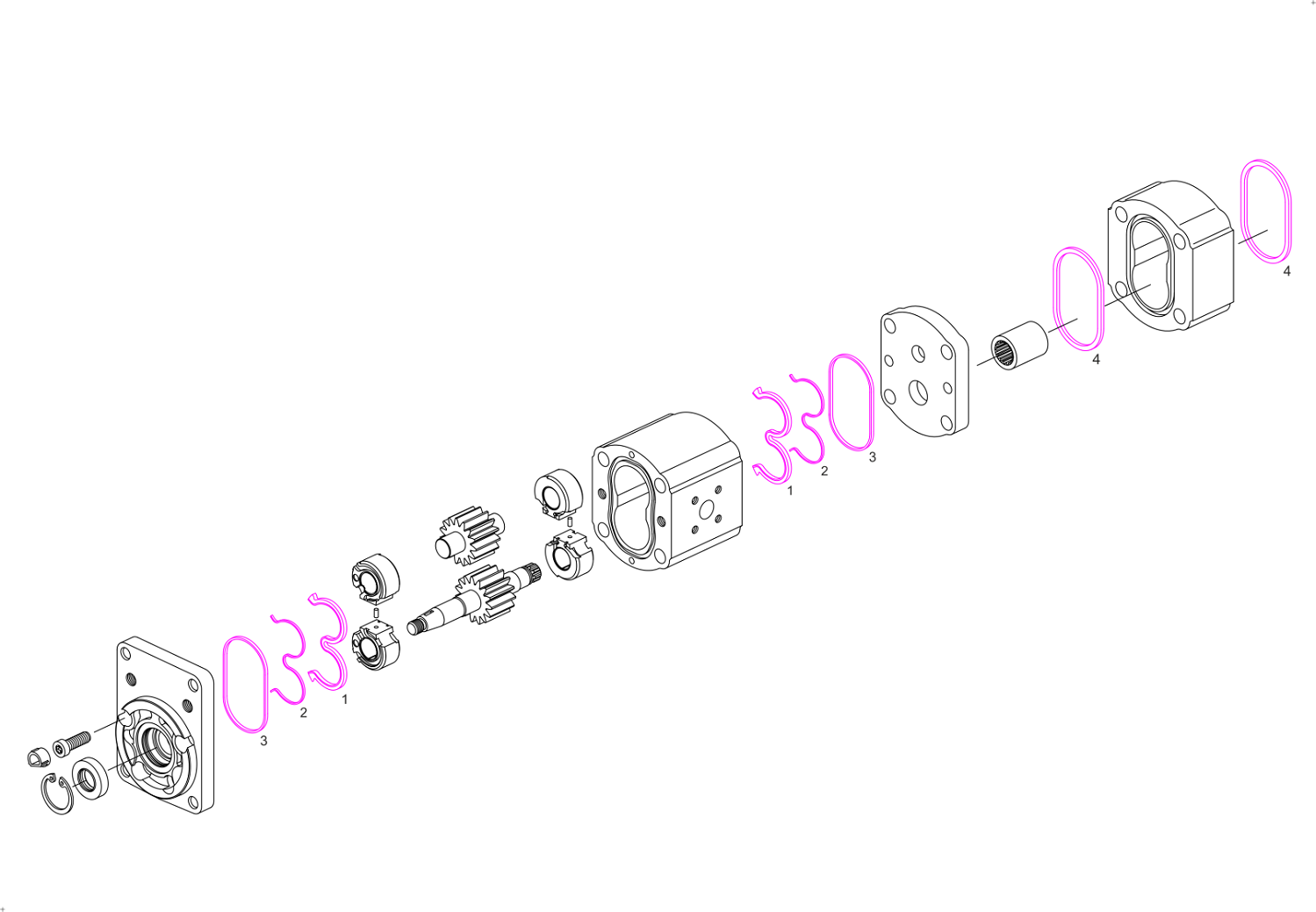

Repair kit for Gear Pumpseal kit | 1 517 010 152 | Rexroth | Germany | |
Repair kit for Gear Pumpshaft seal | 1 150 283 008-000 | Rexroth | Germany | |
Repair kit for Gear Pumpshaft seal | 1 150 283 008-000 | Nok | JAPAN | |
Repair kit for Gear PumpREPAIR KIT | TOYOOKI | JAPAN | ||
Gear Pump | 0510425009 | Rexroth | Germany | |
Gear Pump | 0510525009 | Rexroth | Germany | |
Gear Pump | 0510525006 | Rexroth | Germany | |
Gear Pump | TCP2-F10-MRI-A-020 | TOYOOKI KOGYO CO.,LTD | JAPAN | |
Spider | GR24 | KTR24 | Germany | |
Coupling | 22-30 | KTR | Germany | |
ALCU | MCU | V1.4 | MAN | |
BCU | V2.0 | MAN | ||
SBU | V1.5 | MAN | ||
HMI | MAN | |||
Others | MPC | V1.73 | ||
ENCODERMC-SINGLE | LeineLinde-855900010 | Sweden | ||
ENCODERMC-DOUBLE | LeineLinde-855900020 | Sweden | ||
ENCODERME | LeineLinde-8309000001 | Sweden | ||
LEVEL SWITCH | BEDIA CLS-50 500274 | Germany | ||
0330 PCB ASSY | 1142824-2 | MAN | ||
Lubricator intermediate box | MAN | |||

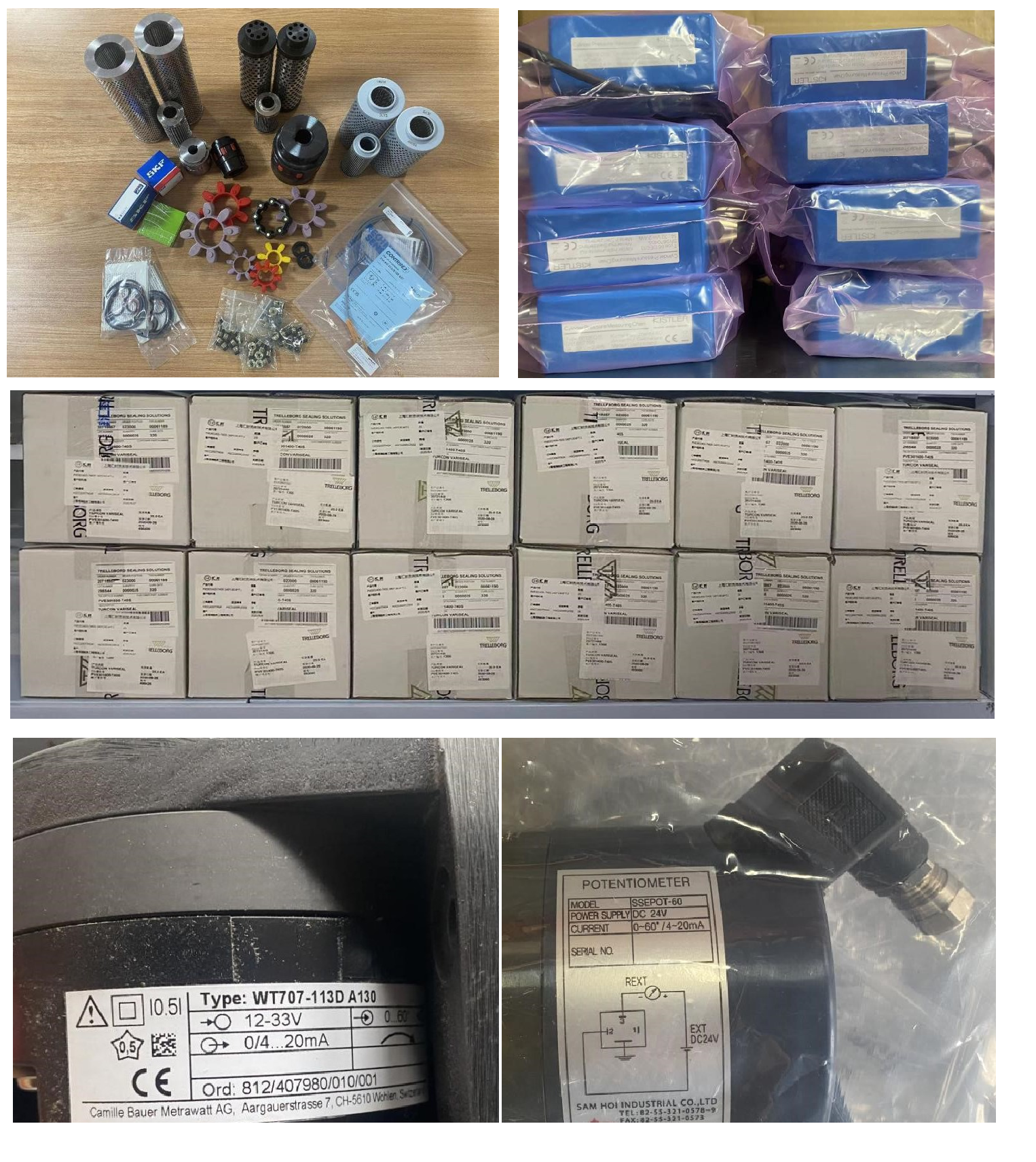

LOAD TRANSMITTER | SSEPOT-60 | KOREA | ||
LOAD TRANSMITTER | WT707-113D A130 | Switzerland | ||
PMI pressure transmitter | 6613EQ | KISTLER | ||
